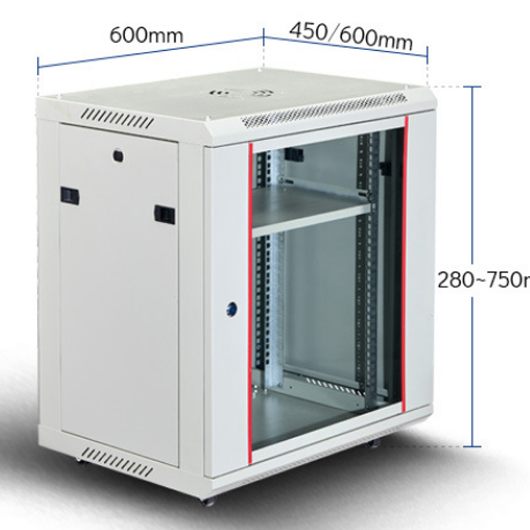

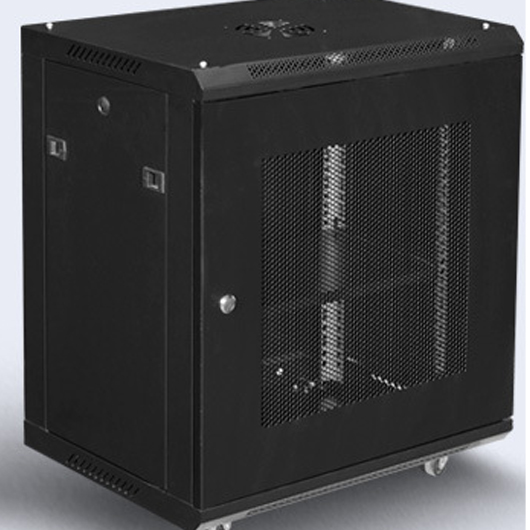

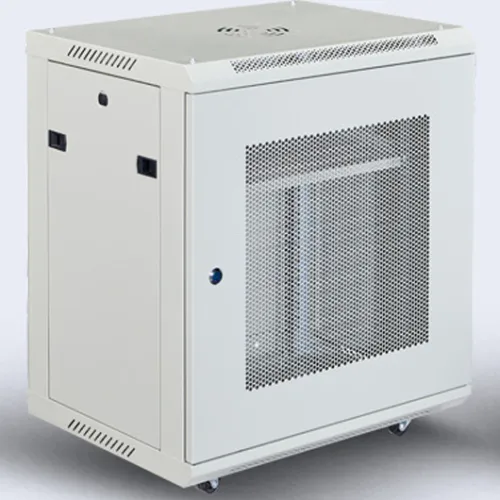

The Ground Mounted Network Cabinet model JT-6612 is a high-performance 12U enclosure designed to meet rigorous international standards while providing exceptional durability and flexibility for network infrastructure deployment. With dimensions of 600mm width × 600mm depth × 720mm height, this cabinet complies with ANSI/EIA RS-310-D, IEC297-2, DIN41491:PART1, DIN41494:PART7, GB/T3047.2-92, and ETSI standards, ensuring global compatibility and reliability. Constructed from SPCC high-quality cold-rolled steel plates with varying thicknesses (2.0mm for mounting rails, 1.5mm for installation beams, and 1.2mm for other components), the cabinet features a welded frame with modular structural design that combines lightweight construction with robust strength. The surface treatment includes degreasing, acid cleaning, anti-rust phosphating, pure water cleaning, and electrostatic spraying, while the mounting rails are made of aluminum-zinc coated steel plates for enhanced corrosion resistance.
A key advantage of this ground mounted enclosure is its user-friendly design and versatile configuration options. The embedded side panels support tool-free installation and removal, with optional locking mechanisms for added security. Both front and rear doors can be quickly detached without tools and swapped between left and right orientations, featuring a 180-degree opening angle that facilitates easy equipment installation and maintenance. The cabinet's elegant appearance adds value to any engineering project, while multiple cable management options include upper and lower cable channels and adjustable bottom cable entry points that can be customized to specific requirements. Additional features include optional installation bases for cabinet stabilization, bottom cable management, cold air supply, and rodent protection, along with robust cabinet interconnection systems and spring-loaded locks on both front and rear doors. With a static load capacity of 100kg (with brackets) and IP20 protection rating, this network cabinet delivers reliable performance in various environments.
Ideal for data centers, telecommunication facilities, server rooms, network closets, and industrial control environments, the JT-6612 Ground Mounted Network Cabinet offers outstanding value for organizations seeking to organize and protect critical network equipment. The cabinet's flexible design accommodates various installation scenarios, from single cabinet deployments to multi-cabinet configurations, while the comprehensive accessory options enable customization for specific application needs. The sturdy construction ensures long-term reliability, making it suitable for environments requiring durable network infrastructure solutions. Supported by international standard compliance and thoughtful design features, this professional Network Enclosure represents an excellent investment for businesses seeking to optimize their network equipment management with a reliable, versatile, and standards-compliant solution.
