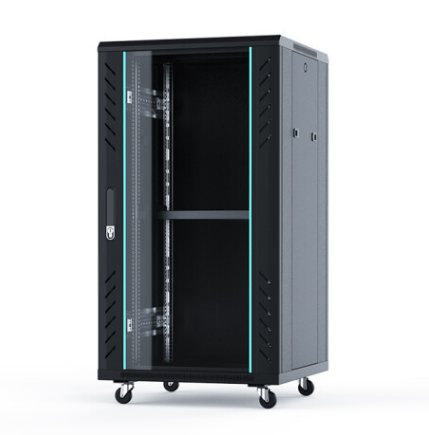

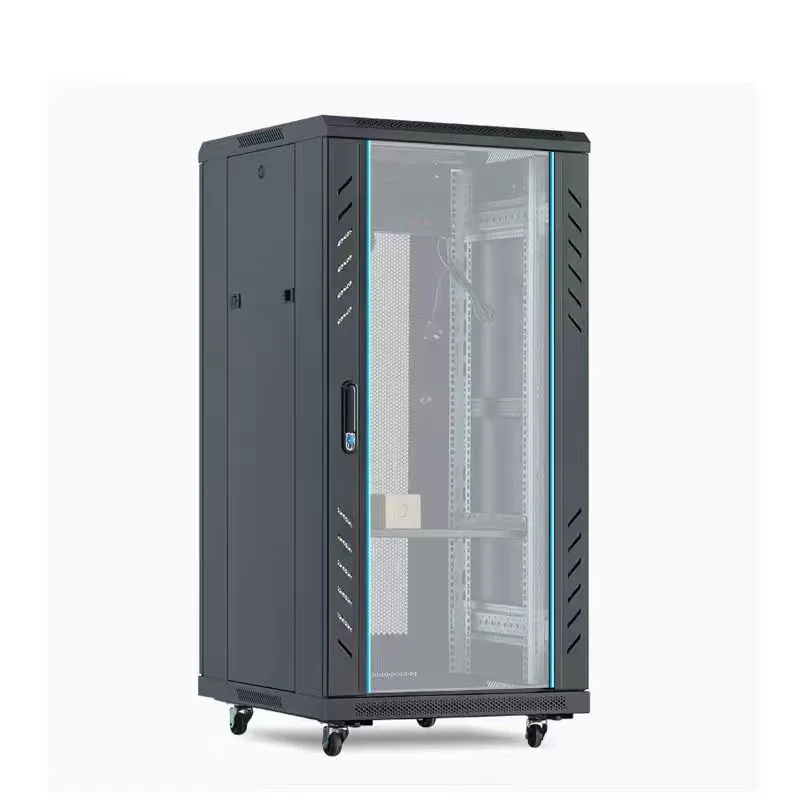

The Server Room Network Cabinet model JT-6618 is a premium 18U enclosure engineered to meet the demanding requirements of modern server rooms and data environments. With dimensions of 600mm × 600mm × 988mm, this cabinet complies with international standards including ANSI/EIA RS-310-D, IEC297-2, DIN41491:PART1, DIN41494:PART7, GB/T3047.2-92, and ETSI, ensuring global interoperability and reliability. Constructed from SPCC high-quality cold-rolled steel plates with optimized thickness distribution (2.0mm for mounting rails, 1.5mm for installation beams, and 1.2mm for other components), the cabinet features a welded frame with modular design that achieves an ideal balance between lightweight construction and structural integrity. The surface treatment process includes degreasing, acid cleaning, anti-rust phosphating, pure water cleaning, and electrostatic spraying, while mounting rails utilize aluminum-zinc coated steel plates for superior corrosion resistance.
A significant advantage of this server room enclosure is its exceptional accessibility and maintenance-friendly design. The embedded side panels enable tool-free installation and removal, with optional locking mechanisms for enhanced security. Both front and rear doors feature quick tool-free detachment and left-right interchangeability with 180-degree opening angles, significantly simplifying equipment installation and maintenance procedures. The cabinet's elegant appearance enhances professional server room environments while supporting convenient installation of centralized power distribution units. Multiple cable management solutions include closeable upper and lower cable channels and adjustable bottom cable entry points that can be customized to specific installation requirements. Additional features include optional installation bases for cabinet stabilization, bottom cable management, cold air supply, and rodent protection, along with robust cabinet interconnection systems and spring-loaded locks on both front and rear doors. With an impressive static load capacity of 150kg (with brackets) and IP20 protection rating, this network cabinet delivers outstanding performance in demanding server room applications.
Ideal for enterprise server rooms, data centers, telecommunication facilities, network operation centers, and IT equipment rooms, the JT-6618 Server Room Network Cabinet provides exceptional value for organizations requiring reliable equipment housing solutions. The cabinet's versatile design accommodates various deployment scenarios, from individual cabinet installations to complex multi-cabinet configurations, while comprehensive accessory options enable customization for specific application needs. The robust construction ensures long-term reliability, making it perfectly suited for environments requiring durable network infrastructure solutions. Supported by international standard compliance and thoughtful engineering features, this professional server cabinet represents an excellent investment for businesses seeking to optimize their server room infrastructure with a reliable, adaptable, and standards-compliant enclosure solution.
Model: JT-6618
Standards: Complies with ANSI/EIA RS-310-D, IEC297-2, DIN41491:PART1, DIN41494:PART7, GB/T3047.2-92 standards, compatible with ETSI standards
Dimensions: 600mm × 600mm × 988mm (18U)
Cabinet Structure: Welded frame, modular structure design, lightweight, sturdy construction, flexible and versatile

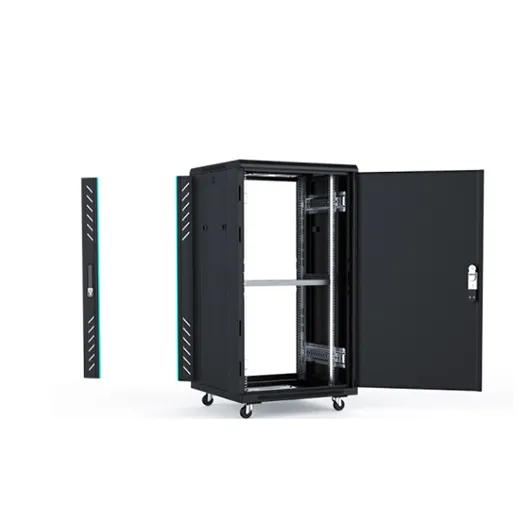

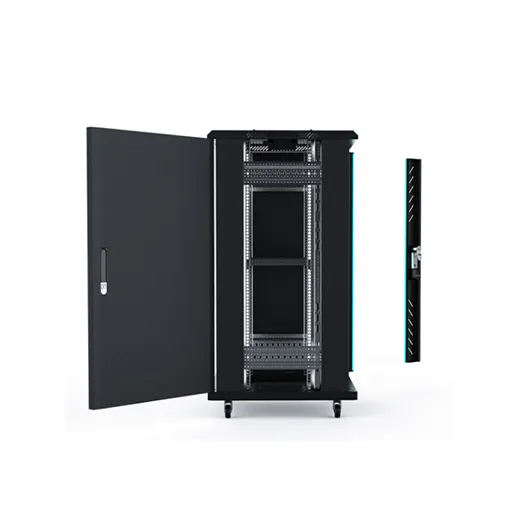

Side Doors: Embedded side doors, tool-free installation and removal, optional lockable anti-removal design

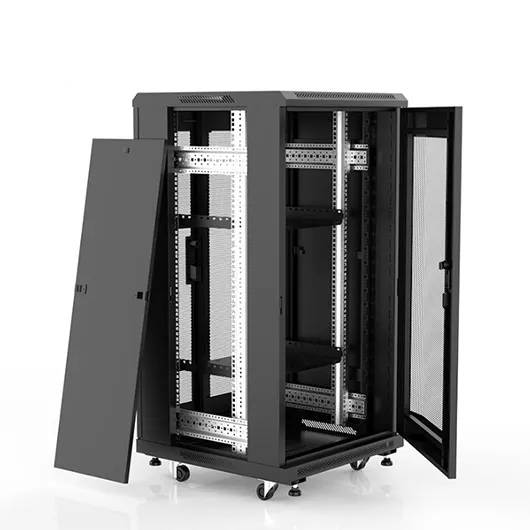

Front/Rear Doors: Front and rear doors can be quickly detached without tools and swapped left-right, 180° opening angle, convenient for equipment installation and maintenance
Materials & Process: SPCC high-quality cold-rolled steel plates; Thickness: Mounting rails 2.0mm, Installation beams 1.5mm, Other components 1.2mm
Surface Treatment: Mounting rails: Aluminum-zinc coated steel plates; Other surfaces: Degreasing, acid cleaning, anti-rust phosphating, pure water cleaning, electrostatic spraying
Appearance Design: Elegant and noble, quality craftsmanship, adds value to your project; Convenient installation of centralized power distribution units; Sturdy structure, closable upper and lower cable channels, bottom cable entry hole size adjustable as needed
Product Features:
Optional installation base for cabinet fixation, bottom cable routing, bottom cold air supply, and rodent protection
Sturdy cabinet interconnection
Front and rear doors equipped with spring locks
Comprehensive optional accessories
Load capacity: Static load 150kg (with brackets)
Protection level: IP20
