19 '-15U wall mounted network cabinet

19'-15U Wall Mounted Network Cabinet It is a standard network equipment, which is 19 inches in size, 15U in height, 600mm in width and 450mm in depth.This kind of cabinet is usually used for the stacking of computer network equipment, wireless communication equipment, and electronic equipment.

Inquiry

E-mail：2091376107@qq.com

Detailed Description

Product Name: 19’ - 15U Wall Mount Cabinet

Material: SPCC cold rolled steel

Capacity: 19 inch-15U

Model: JT-G6415

Overall Dimension: W600*D450*H769MM

Load Capacity: 60KG

Protection Grade: IP20

Surface treatment: electrostatic spraying

Raw material thickness: column 1.5MM, box body 1.0MM

Accessories: 4 U columns, 20 sets of M6*12 screw clamps, 1 tray, carton packaging

Colour: RAL9004 black fine sand grain/RAL7035 computer grey

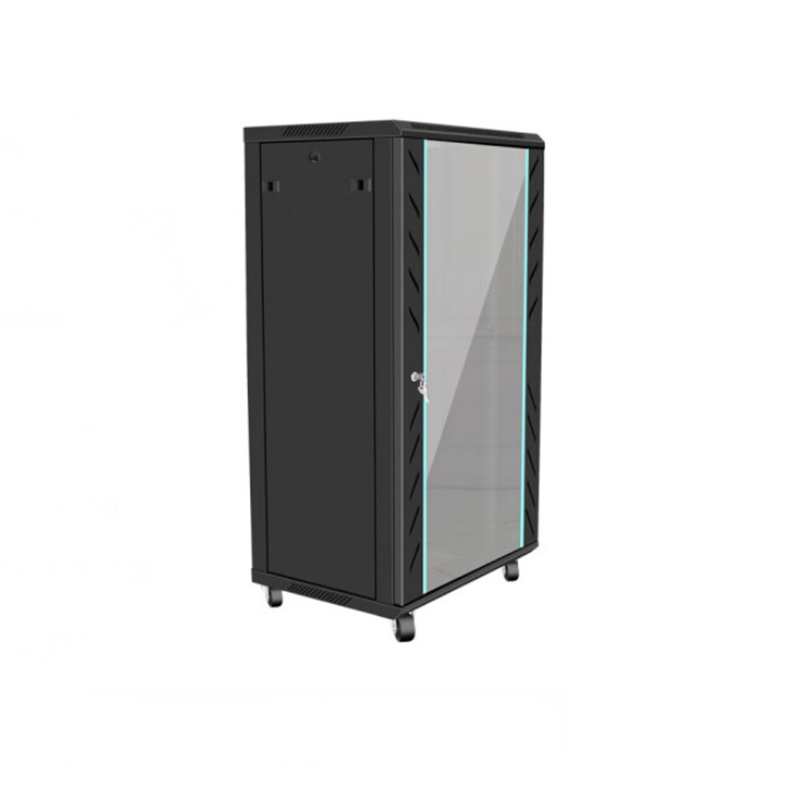

19’ - 15U Wall Mount Cabinet

19'-15U wall mounted network cabinet It is a standard network equipment, which is 19 inches in size, 15U in height, 600mm in width and 450mm in depth.This kind of cabinet is usually used for the stacking of computer network equipment, wireless communication equipment, and electronic equipment. It is designed to meet the standards of ANSI/EIARS-310-D, IEC297-2, DIN41491, etc. The protection level is IP20, with good heat dissipation, silent design and convenient site installation. The product material is high quality SPCC cold rolled steel plate, surface treatment is degreasing, phosphating, electrostatic spraying, and the main body colour is grey. It is compatible with all 19’ rack-mounted devices and provides top and bottom pre-set multiple routing channels for easy installation and maintenance. In addition, it features atmospheric exterior design, precision craftsmanship and dimensions, standard welded frame construction, and can be equipped with non-perforated locking door strips or mesh front doors.
